Singulating machines for Ceramic substrates

P202

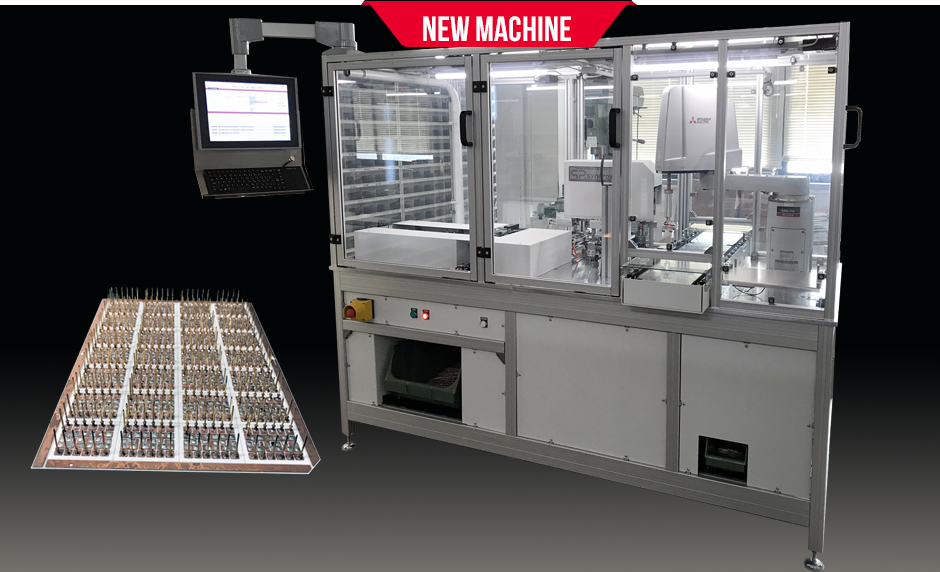

Singulating and wire&contour inspection machine for Ceramic DCB (Direct Copper Bonding) modules from MasterCard. Suitable for master card holding press fit pins already inserted The cards are supplied to the machine trough an input conveyor. Each singulated and vision inspected module is inserted into output trays trough a SCARA robot. Rejects are placed into dedicated trays. Trays with good parts are delivered In-Line to the next machine. The machine is fully programmable to execute the complete cycle starting from product recipe. A sophisticated "Touch screen" operator panel based on PC allows the fully programmability for a variety of products as well the control of each machine alarm. Complete connection with Factory Oracle data base allows fully traceability for each single produced device.

  • Cadence: better than 5 second for piece

Size

length: 200 cm
width: 97,5 cm
height: 175 cm

Technologies

  • Singulation of Ceramic substrates with or without pyns
  • "Touch screen" operator panel based on PC
  • Wire conformity AOI
  • Edges conformity after singulation AOI
  • Full Traceability of each single device of the Master card with Factory Oracle Data Base
  • Full programmability of each station
  • robot SCARA
  • Matrix and bar code readout
