Material Handlers for Orthodyne Bonders

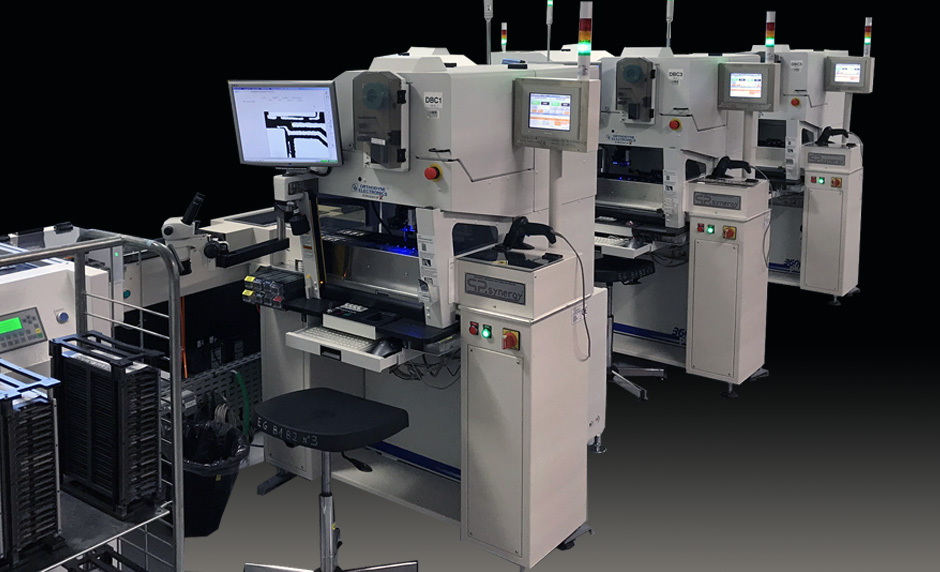

V227-V228-V230 - In line ORTHODYNE handler machines

Handler for Orthodyne Bonders M3600- M3700 for DBC Bonding line with full traceability of data for automotive production. Boat mapping at input for full traceability with factory data base. Full management of down time as well for Tool & wire replacement times for perfect production load sharing between machines.

  • Cadence:Boat change time at bonding station less than 6"


length: 180 cm
width: 110 cm
height: 140 cm


  • Automatic magazine changer
  • Automatic feeding of boats to bonding station
  • Full dialog with Bonder for program choice, devices to be bonded. based on code of incoming boat.
  • Traceability of each single device with Factory data base
  • "Touch screen" operator panel
