Singulating machines for Ceramic substrates

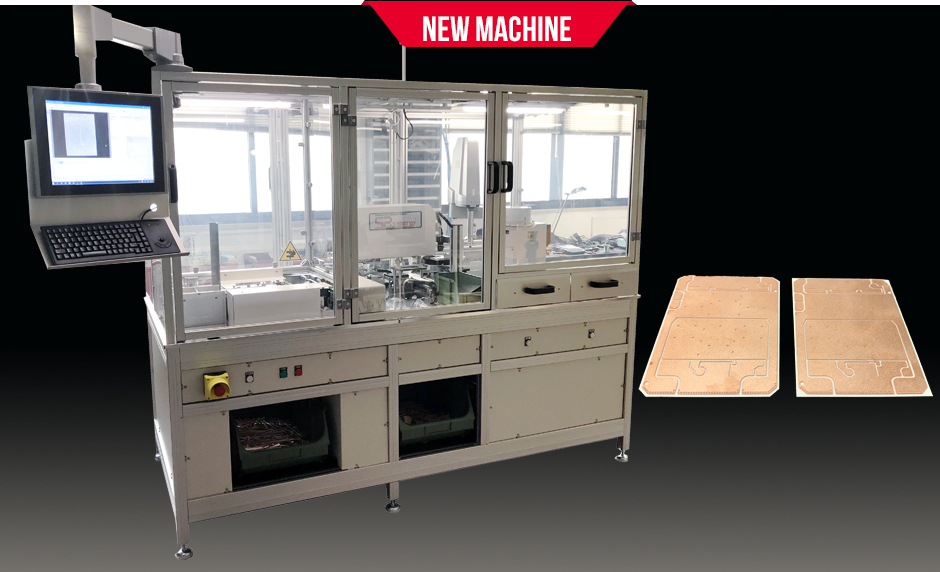

Singulating and wire&contour inspection machine for Ceramic DCB (Direct Copper Bonding) modules from MasterCard. Suitable for master card holding press fit pins already inserted Equipped of special supplementary station where is activated a corner removal from module edges. Up to 4 corner simultaneous removal. The cards are supplied to the machine by an Input Magazine. Each singulated and vision inspected module is inserted into output blisters trough a SCARA robot. Rejects are placed into dedicated blister. The machine is fully programmable to execute the complete cycle starting from product recipe. A sophisticated "Touch screen" operator panel based on PC allows the fully programmability for a variety of products as well the control of each machine alarm. Complete connection with Factory Oracle data base allows fully traceability for each single produced device.

  • Cadence: better than 5 second for piece


length: 206,5 cm
width: 97,5 cm
height: 175 cm


  • Singulation of Ceramic substrates
  • Corner removal from module edges
  • "Touch screen" operator panel based on PC
  • Wire conformity AOI
  • Edges conformity after singulation AOI
  • Full Traceability of each single device of the Master card with Factory Oracle Data Base
  • Full programmability of each station
  • Robot SCARA
