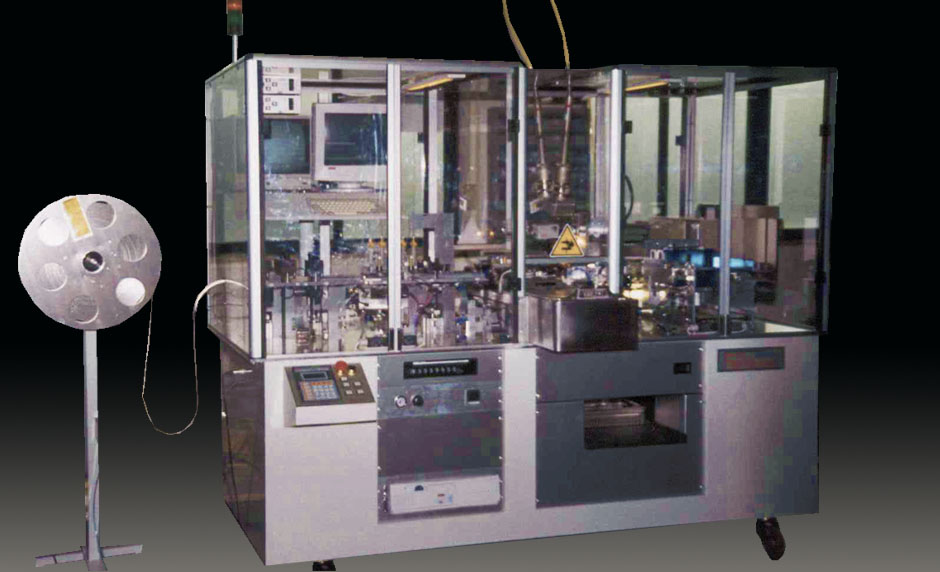

Highly integrated laser welding machine for tantalum capacitor type "C,D flat". The original laser welding process has been set by GP.synergy in 1987 and now used by the most important manufacturers in the world. The machine is fed by double row lead-frame in reel. The anodes of tantalum capacitors are fed in racks. The final product is a capacitor welded by laser on the lead-frame after applying a silver adhesive deposit below the anode and related curing.

  • Cadence:better than 15" per double lead-frame


length: 310 cm
width: 140 cm
height: 185 cm


  • Laser cutting and welding based on a unique GP.synergy process
  • Lead frame cutting and forming
  • Silver Solder paste deposit
  • Fast product change available
  • Protective silicon coating
  • Solder paste and silicon curing
  • "Touch screen" operator panel based on PC
